pinhole leak or a section of piping that’s thinner than spec after sustained acid exposure. Selecting High Strength Alloy 20 pipes in corrosive industrial environments determines whether a system runs for the long term or needs premature replacement.

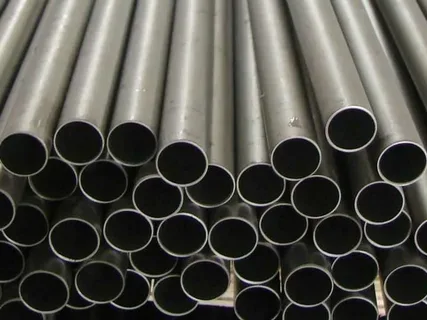

What Are Alloy 20 Pipes?
Alloy 20 (Carpenter 20) is the most popular alloy for the application of sulfuric acid and is suitable for use in the presence of other aggressive chemicals. It also contains molybdenum and copper which adds further resistance to pitting and crevice corrosion in environments containing chlorides
Pipes made from this alloy are manufactured to standards such as ASTM B729 and ASME SB729, covering seamless and welded construction. These standards define the chemical composition, mechanical properties, and dimensional tolerances buyers should expect from properly certified material.
Key Factors to Consider When Choosing Alloy 20 Pipes
Temperature and pressure conditions determine the wall thickness required and whether the application falls within the alloy’s safe operating range. Seamless versus welded construction is another decision point, since each offers different strengths depending on the pressure class and reliability requirements of the system. Pipe size, thickness and overall dimensions need to match the project’s engineering drawings precisely and mechanical properties yield strength, tensile strength, elongation should be verified against the applicable specification.
Surface finish and fabrication requirements matter for downstream welding or installation work, and confirming ASTM/ASME specifications along with proper certification protects against receiving material that doesn’t actually meet the project’s technical requirements.
Why Choose Alloy 20 Seamless Pipes?
Seamless construction eliminates the weld seam that welded pipe relies on, giving the pipe wall continuous, uniform material properties around its full circumference. That continuity translates into better reliability under pressure and reduces the risk of a weak point developing at a seam over years of service. For critical industrial applications high-pressure sulfuric acid lines, for instance seamless Alloy 20 pipe is often the preferred choice specifically because it removes one more variable from the reliability equation.
Applications of Alloy 20 Pipes
Chemical processing plants rely on Alloy 20 pipes wherever sulfuric acid handling is part of the process, since few other materials hold up as consistently across a range of acid concentrations. Pharmaceutical processing and food processing facilities also specify this alloy where both corrosion resistance and material purity matter. Beyond straight piping runs, Alloy 20 shows up in tanks, heat exchangers, and other equipment exposed to similarly corrosive service conditions.
Common Mistakes to Avoid When Selecting Alloy 20 Pipes
A few recurring mistakes trip up buyers sourcing this material. Selecting the wrong grade variant, or assuming any nickel alloy will perform the same way Alloy 20 does in acid service, is one of the most common. Ignoring the actual chemical concentration the pipe will face. Choosing dimensions that don’t match the actual pressure and flow requirements, overlooking temperature and pressure conditions during selection, and purchasing material without proper certification all create risk that appears during operation
How to Select a Reliable Alloy 20 Pipe Supplier
A supplier’s manufacturing experience matters as much as the alloy itself. Look for evidence of detailed quality testing, dimensional inspection on every batch and clear material traceability back to the original heat. Proper certifications, including Mill Test Certificates, confirm the pipe meets its stated specification. Stock availability and responsive technical support round out what separates a dependable supplier from one that simply sells pipe by the catalog listing.
Conclusion
Choosing the right Alloy 20 pipe for a project requires matching grade, dimensions, manufacturing type, corrosion resistance, and applicable standards to the real conditions the piping will face in service. Getting each of these factors right rather than relying on the alloy’s general reputation alone is what determines whether a piping system delivers the long, reliable service life Alloy 20 is known for.
